Handling Multi-service DB Initialization with h2-oracle-test

Background

Services commonly require initialization of a database for successful operation. This includes creating the DB schemas themselves as well as any test data required or desired for deploying the application and executing automated tests.

Many times, these services require other services that require their own data initialization against the same database instance.

Currently, this is handled by each service providing their own DB initialization scripts within a Maven module, and published as a JAR to the Maven repository. When another service requires this service to be deployed along with its associated test data, the service’s Maven build extracts the dependent service data JAR and copies to the h2-oracle-test Helm subchart volumes directory so that when the chart is installed to the Kubernetes cluster, the dependent service’s DB initialization scripts are executed in the h2-oracle-test application (along with its own scripts, if needed).

Existing ssoe-sts pom.xml snippet that sets up dependency (eula-service) DB data

<plugin>
    <groupId>org.apache.maven.plugins</groupId>
    <artifactId>maven-dependency-plugin</artifactId>
    <executions>
        <execution>
            <id>unpack-dependency-scripts</id>
            <goals>
                <goal>unpack</goal>
            </goals>
            <phase>prepare-package</phase>
            <configuration>
                <artifactItems>
                    <artifactItem>
                        <groupId>gov.va.mobile.lib</groupId>
                        <artifactId>eula-service-db</artifactId>
                        <version>${eula-service-db.version}</version>
                        <type>jar</type>
                    </artifactItem>
                </artifactItems>
                <includes>db/sql/h2/*.sql</includes>
                <outputDirectory>${project.build.directory}</outputDirectory>
            </configuration>
        </execution>
    </executions>
</plugin>
<plugin>
    <artifactId>maven-resources-plugin</artifactId>
    <executions>
        <execution>
            <id>copy-db-scripts</id>
            <goals>
                <goal>copy-resources</goal>
            </goals>
            <phase>package</phase>
            <configuration>
                <resources>
                    <resource>
                        <directory>${project.build.directory}/db/sql/h2</directory>
                        <includes>**/*.sql</includes>
                    </resource>
                </resources>
                <outputDirectory>${project.build.directory}/helm/ssoe-sts-${project.version}/charts/h2-oracle-test-${h2oracletest.version}/volumes/db</outputDirectory>
                <overwrite>true</overwrite>
            </configuration>
        </execution>
    </executions>
</plugin>

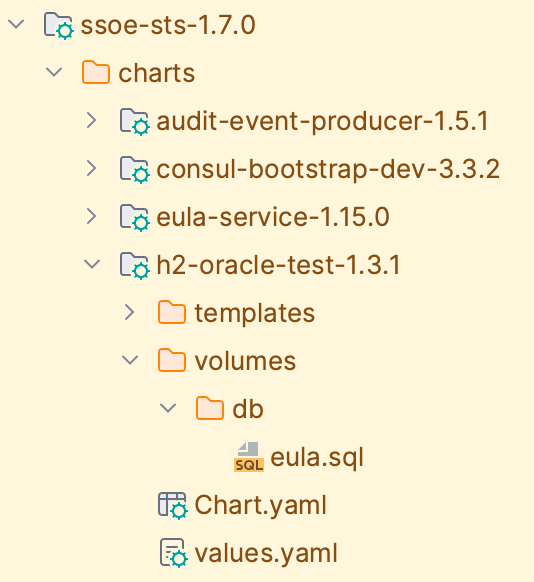

Contents of helm build directory for ssoe-sts

With the transition from Helm to Kustomize-based Kubernetes resource definition, this mechanism needs to be updated to account for how Kubernetes manifests are now defined and managed.

Improving Ease of Configuration With Kustomize

While a similar model could be implemented with Kustomize-based service configurations, a more straighforward, DRY, and less Maven-centric approach is possible.

With Kustomize, each service dependency’s Kubernetes configuration can be specified as a simple remote Git reference. Our convention is to define the service’s standalone required configurations (that is, only the Kubernetes configurations needed for it to be individually deployed) in the dev Kustomize overlay within its project structure. Kustomize introduced the Component configuration type to allow a more flexible way to define and include independent configurations that don’t fit in the traditional "top-down" Kustomize overlay approach (i.e, utilizing composition instead of inheritance)

Example: Given the microservices service-a and service-b, their Kubernetes configurations would be defined as a set of Kustomize configurations within the project’s kubernetes directory. They each define a dev component which contains the minimum configuration and sample data needed for the service to be independently deployed in a "dev"-oriented test scenario.

service-a project structure

service-b project structure

If service-b also depends on service-a to be deployed for it to operate correctly, both service-a and service-b's DB initialization scripts need to be executed against the h2-oracle-test database. To properly handle this multi-service data requirement, each of their initialization scripts (service-a.sql and service-b.sql) need to both be copied into the h2-oracle-test container. The "copying" is handled implicitly by each service defining a Kubernetes ConfigMap that is generated (via Kustomize) from these files, along with a Volume that uses this ConfigMap as its source, to be mounted on h2-oracle-test's file system in a subdirectory of the /data/db directory.

Service A and B Kustomizations

h2-oracle-test Kubernetes Final Deployment

When the h2-oracle-db container starts up, it iterates through each subdirectory in /data/db and executes all SQL scripts it finds, loading the DB data contained in service-a and service-b's own Kustomizations.
